Specifications

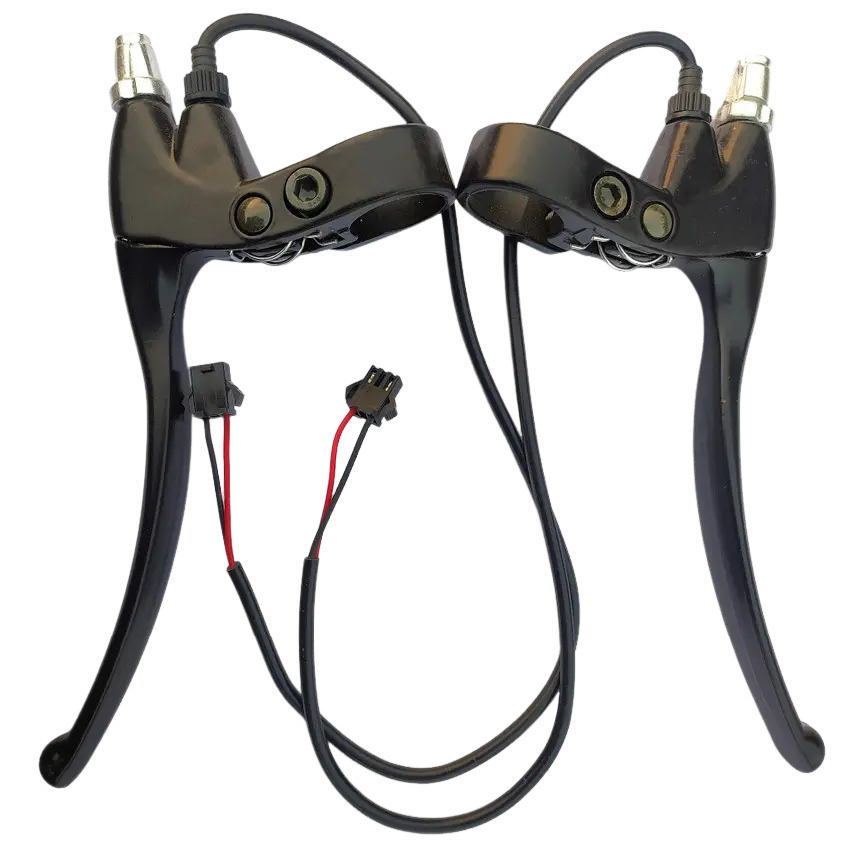

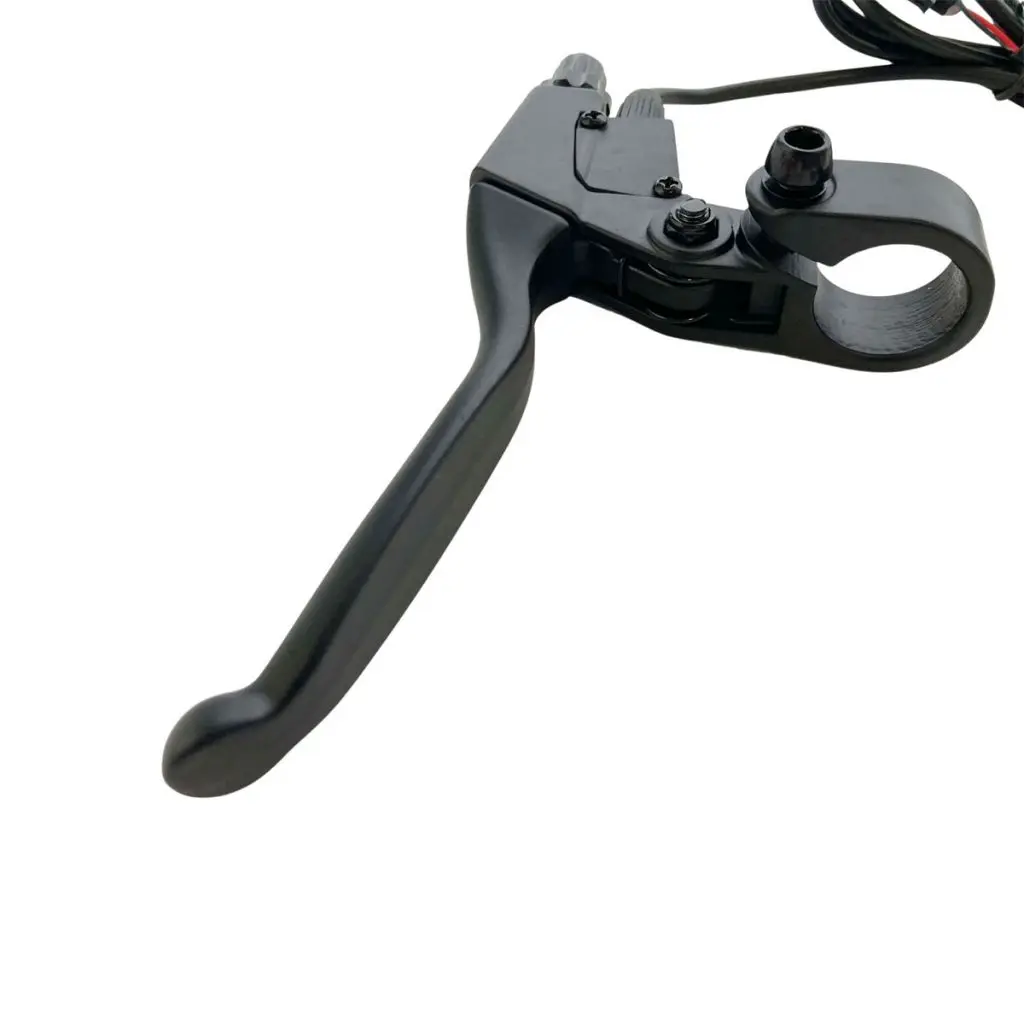

| Application: | Suitable for E-bikes / E-cycles / Conversion Kits |
| Key Features: | Integrated motor cut-off sensor for enhanced safety. Ensures motor power supply cuts instantly when brakes are applied. Compatible with most electric cycle controllers. Designed for both left and right handlebar mounting. Ergonomic lever design for comfortable grip and smooth braking. |
| Technical Specifications: | Type: Mechanical brake lever with electrical cut-off switch Material: High-strength aluminum alloy with ABS housing Cable Length: 1.5 – 2 meters (standard, customizable available) Connector Type: 3-pin waterproof connector Rated Voltage: 36V Switch Type: Normally closed (NC) sensor switch Handlebar Compatibility: 22.2mm standard bicycle handlebar diameter Operation Life: 50,000+ cycles Weight: ~200g (pair) |
| Advantages: | Enhances rider safety by preventing motor operation during braking. Prolongs motor and controller life by reducing load stress. Easy plug-and-play installation. Suitable for disc brakes and V-brake systems. |
